Design Case study
Track Lighting
Innovative Indoor Lighting Products
by
Ideation and Concepts
Ideation:
Ideation was done considering various possibilities and further clustered them according to
the similar ideas.
Design Possibilities:

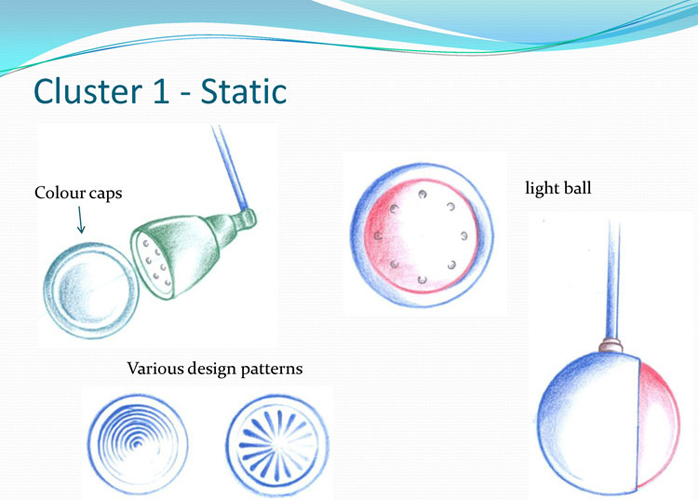

Cluster 1: Static
No provision for movement and stationary with no dynamics.

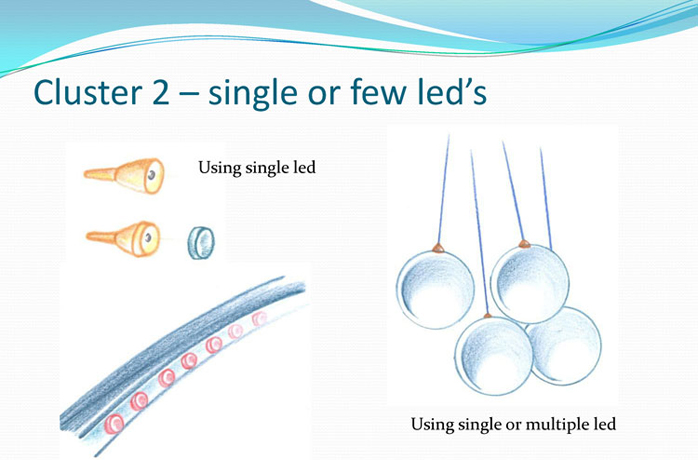

Cluster 2: Single or Few Led's
Use of single or few LED's.

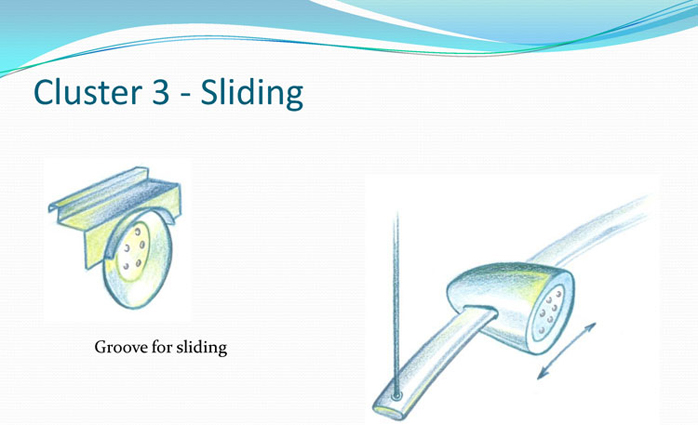

Cluster 3: Sliding Groove
Provision for sliding.

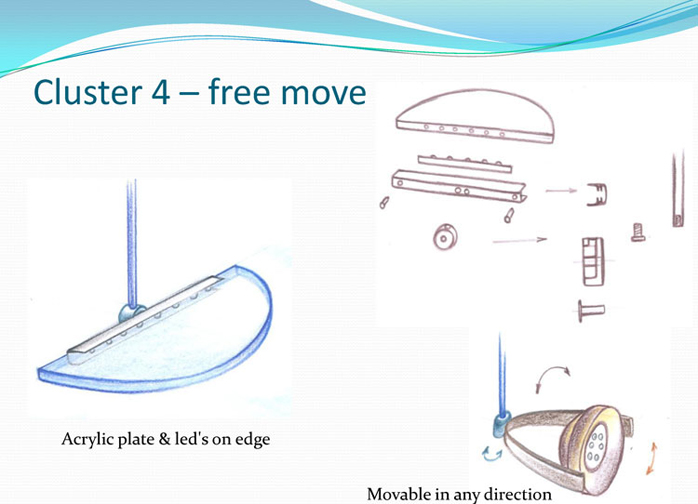

Cluster 4: Free move
Potential of moving in various directions.
Concepts:
During initial explorations some ideas were tested to check their potential. Different arrangements for position of track lights were tried out along with different assembly possibilities, and detailed drawings. And then, below concepts were developed.

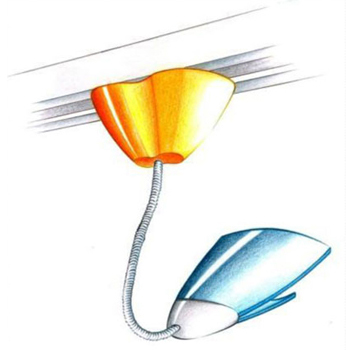

Concept 1-A
Concept 1-B
Concept 1-C
Concept 2-A
Concept 2-B
Concept 2-C

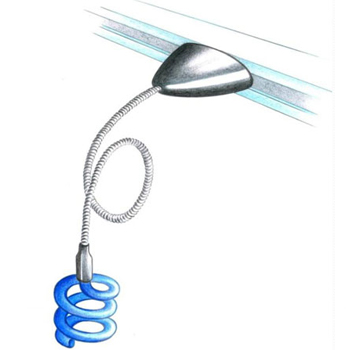

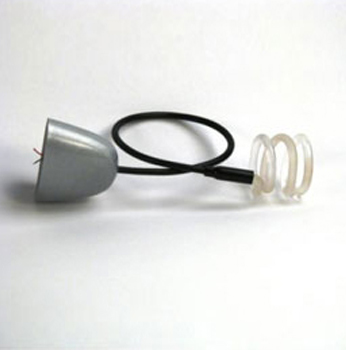

Concept 3:
Spiral acrylic rod and single led, track light can be mounted on ceiling or wall.

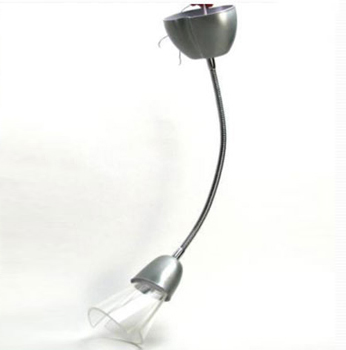

Concept 4:
Formed acrylic sheets and RBG controlled led's, track light which can be fixed on a track on wall.

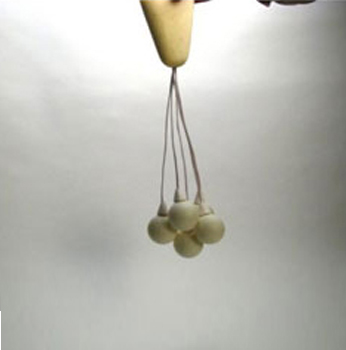

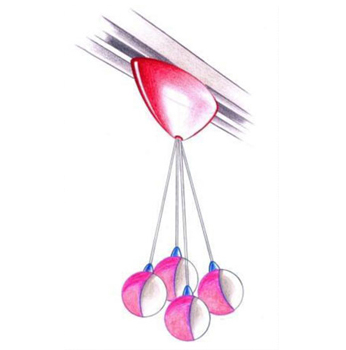

Concept 5:
Track light using light balls, pink coloured Led's used. It gives good light effect and this is ceiling track light.
Concept 6:

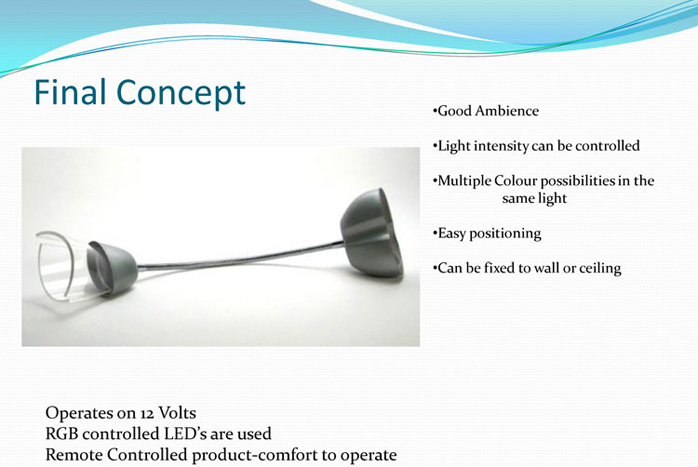

After concept evaluation, concept 4 was choosen as final concept.
Case Study Downloads:
• Innovative Indoor Lighting Products - Pdf
