Design Case study
Design of a Mobile Petrol Pump
Bringing Fuel to the Vehicles
by
Case Study - Slide Show
Design process that was followed in this project:
• Introduction
- Scope of the Project

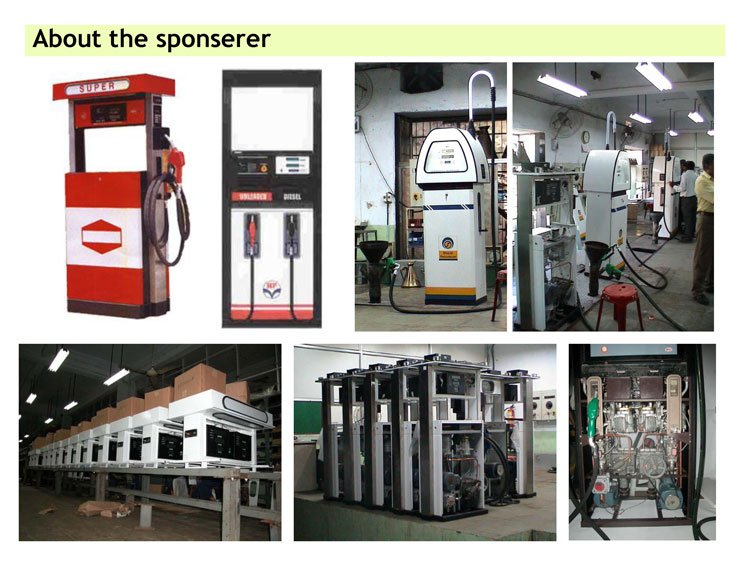

- About the sponserer
- Working of a gasoline dispenser

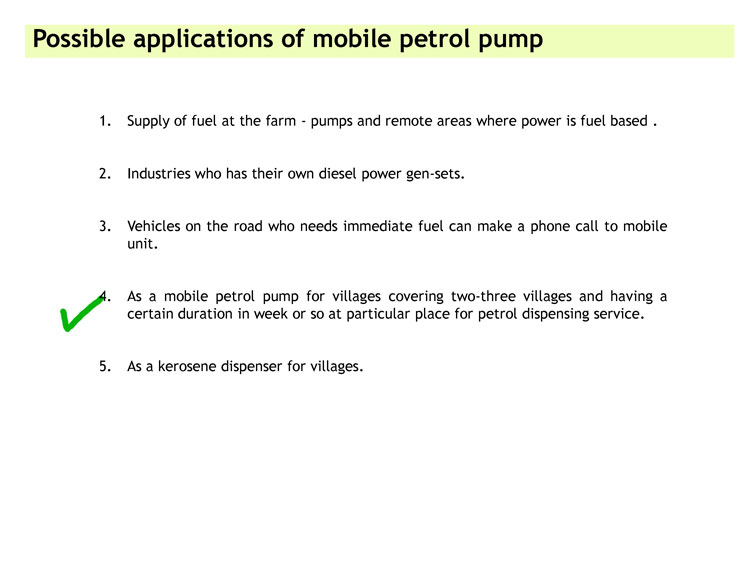

- Possible application of the mobile fuel dispensing unit
• Data Collection and Data Analysis

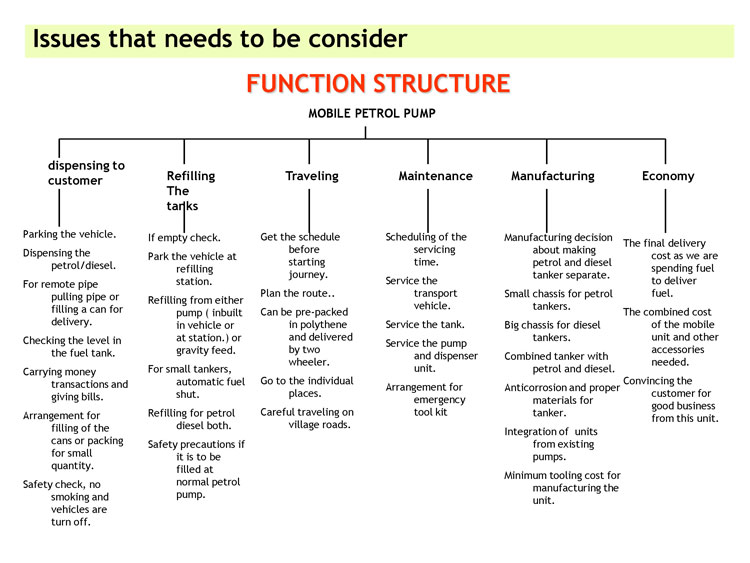

- Function Structure

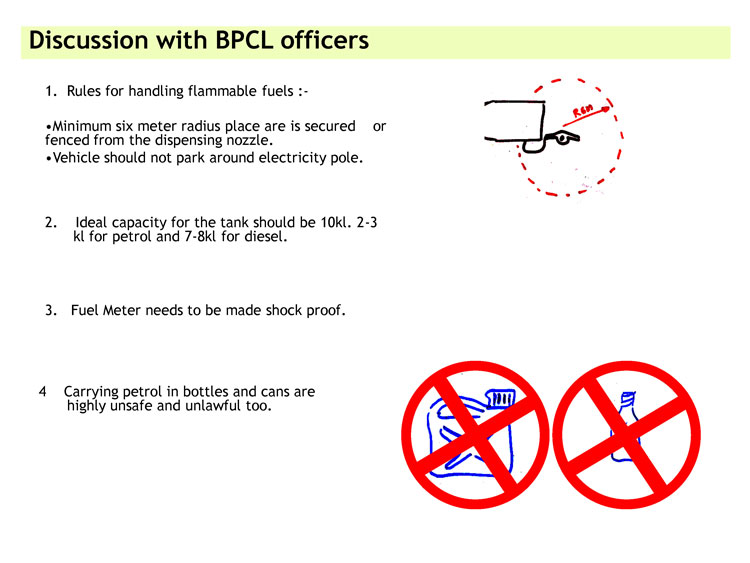

- Visit to Bharat Petroleum Corporation Ltd.

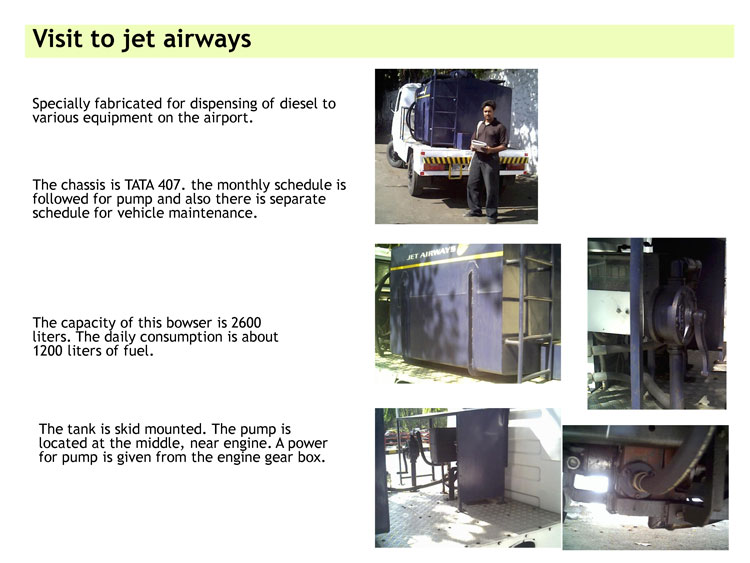

- Visit to Jet Airways

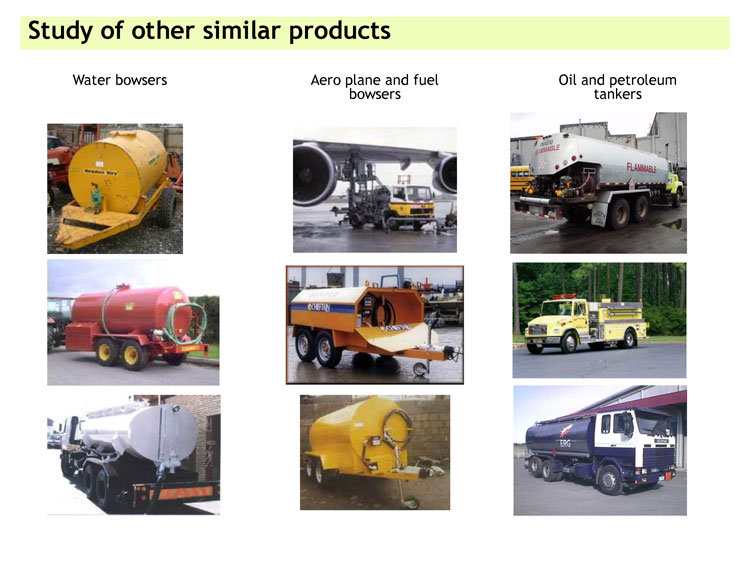

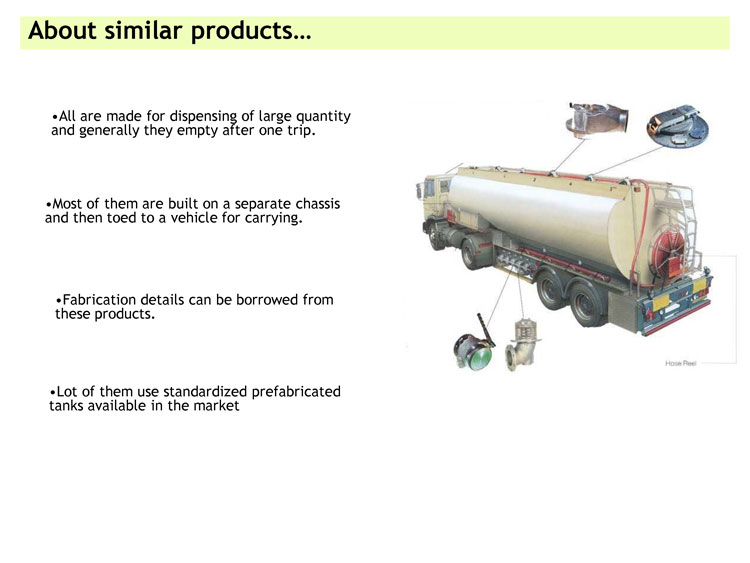

- Study of existing similar products
- Petroleum rules

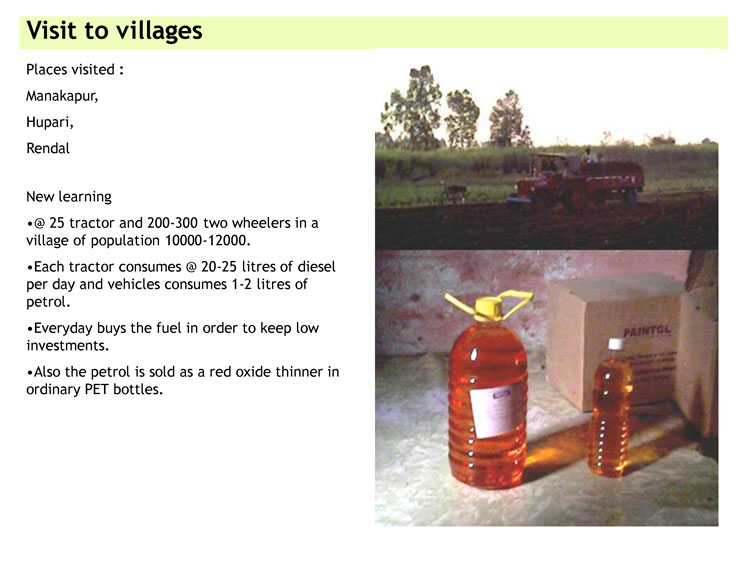

- Visits to Villages

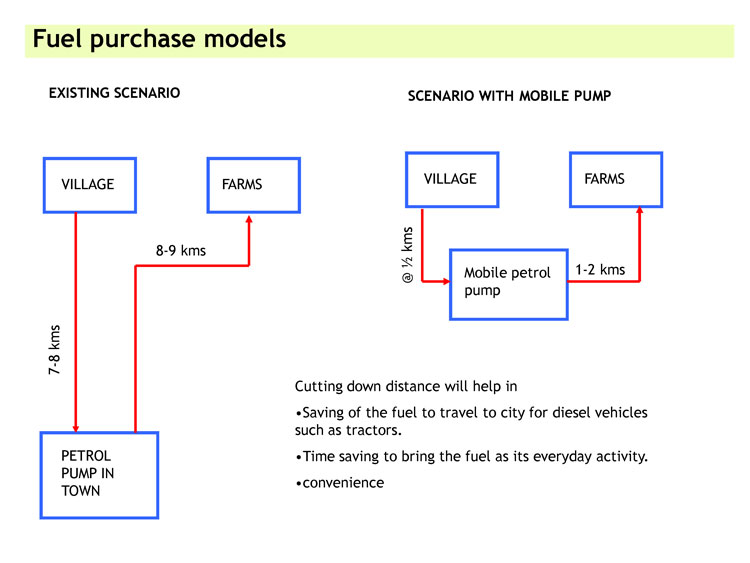

- Diesel Purchase Model for Villagers
- Proposed service plans

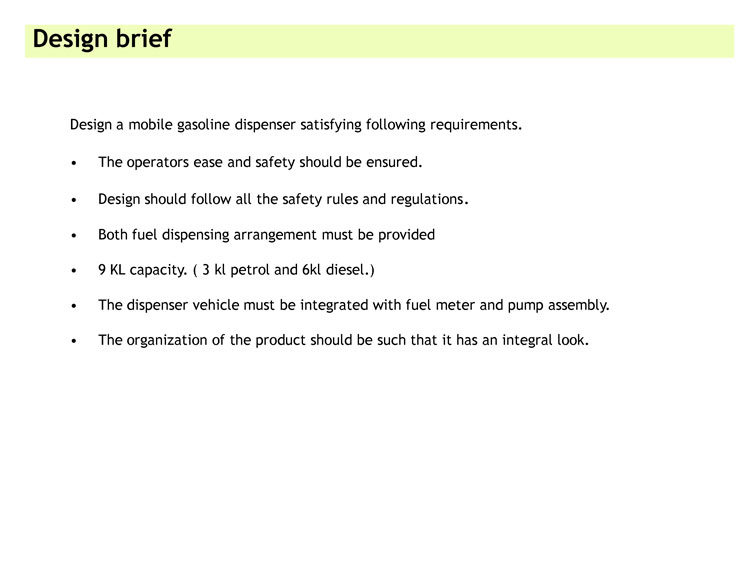

• Design Brief
• Exploration of Technical Specifications

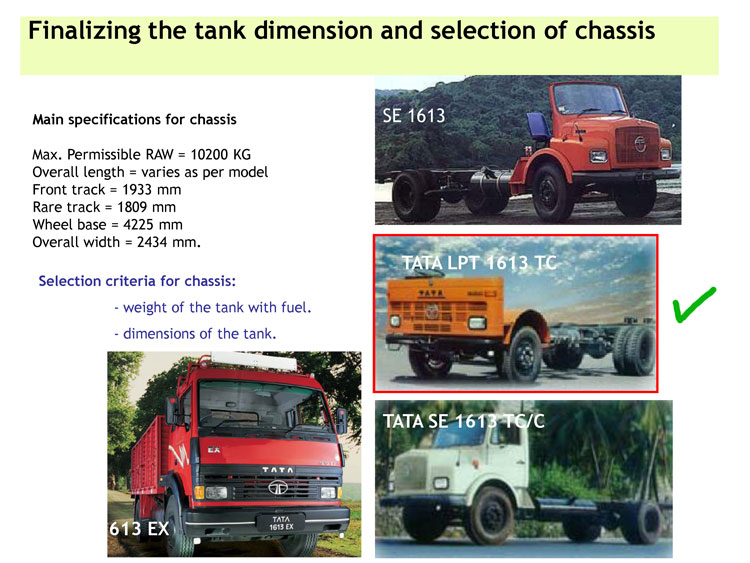

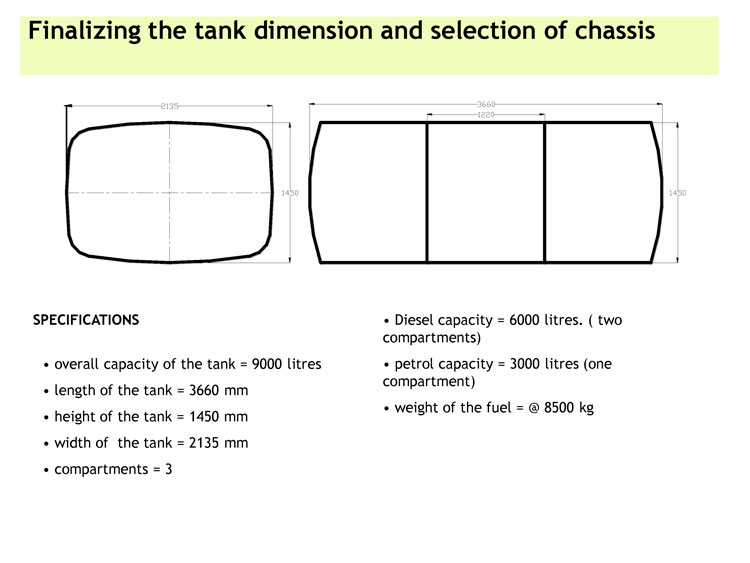

- Finalizing tank dimensions
- Selection of Chassis

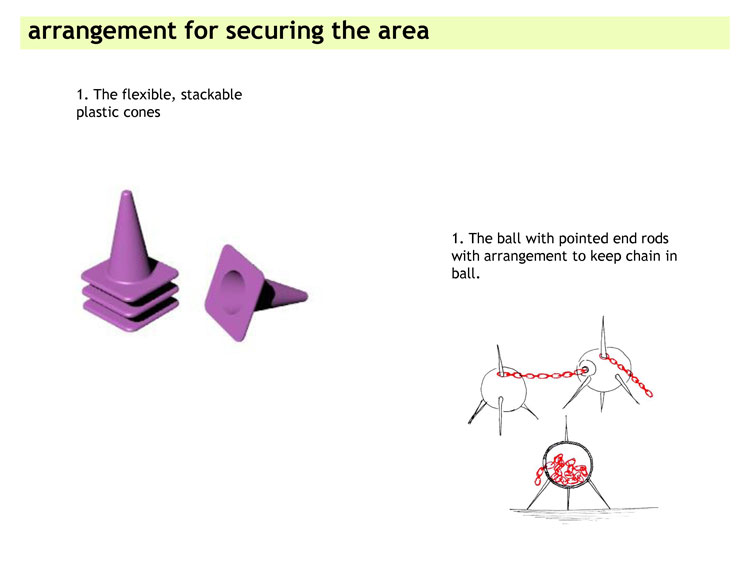

- Ideas for securing the dispensing area

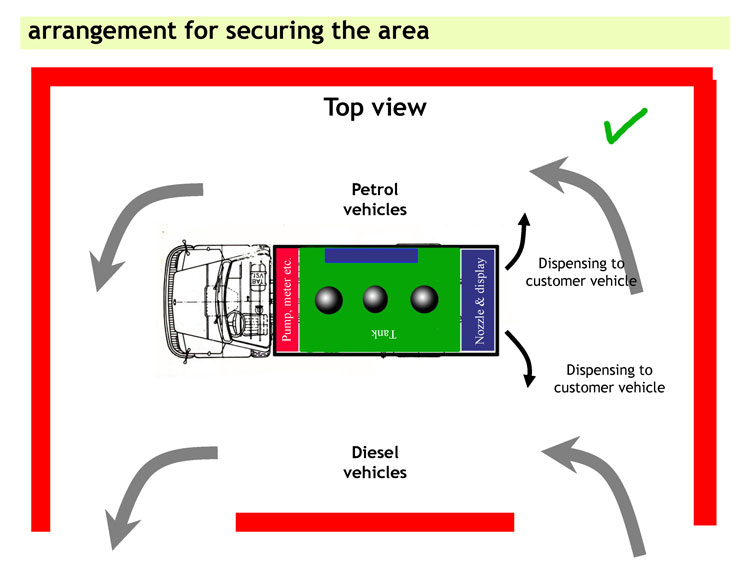

- Finalizing the arrangement for securing the area while dispensing

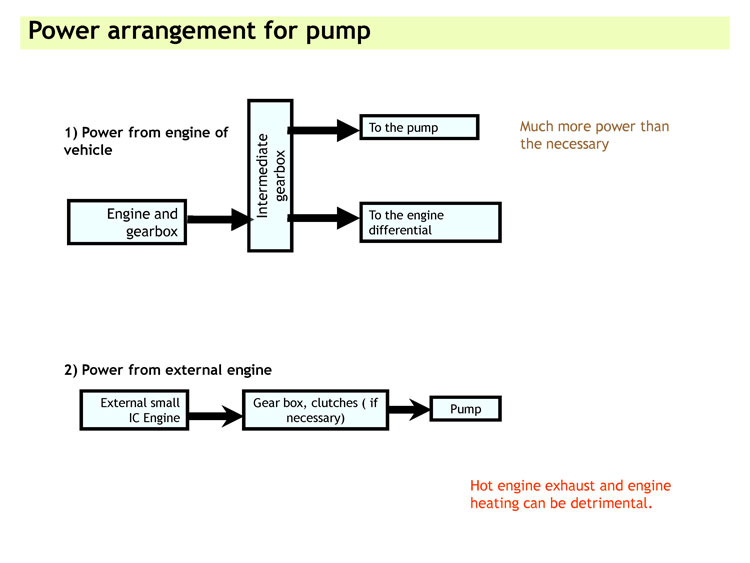

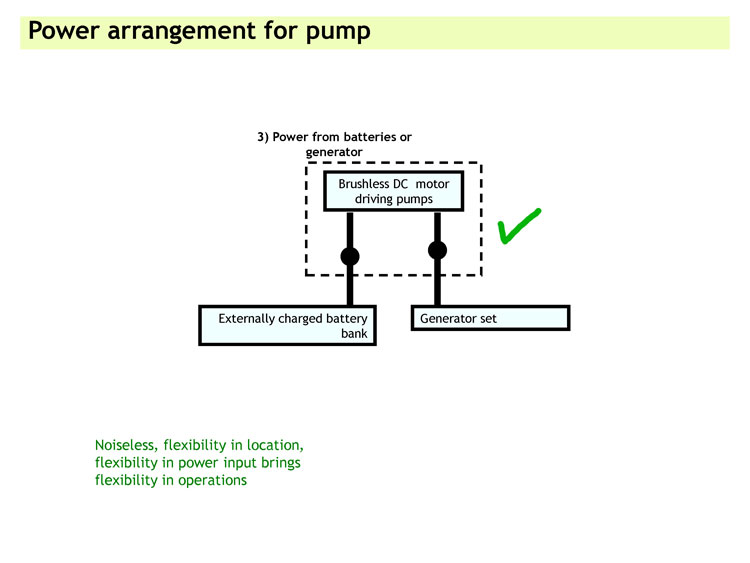

- Power arrangement for pump

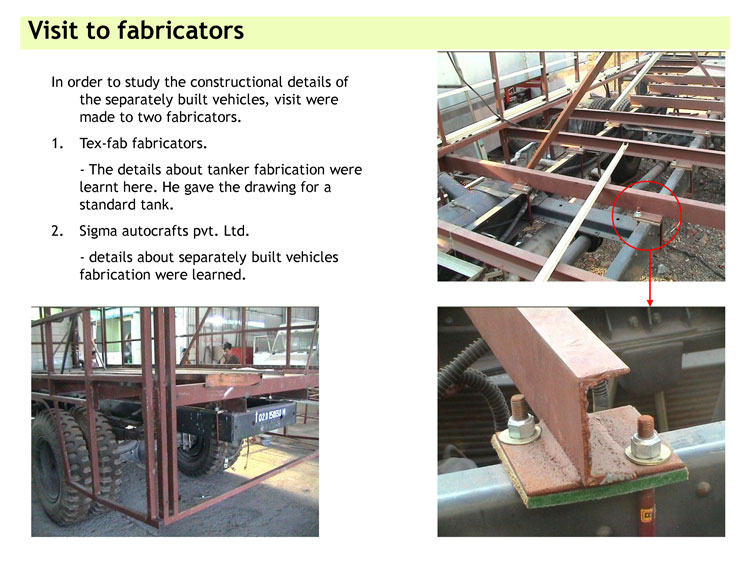

- Manufacturing
- Final product specifications

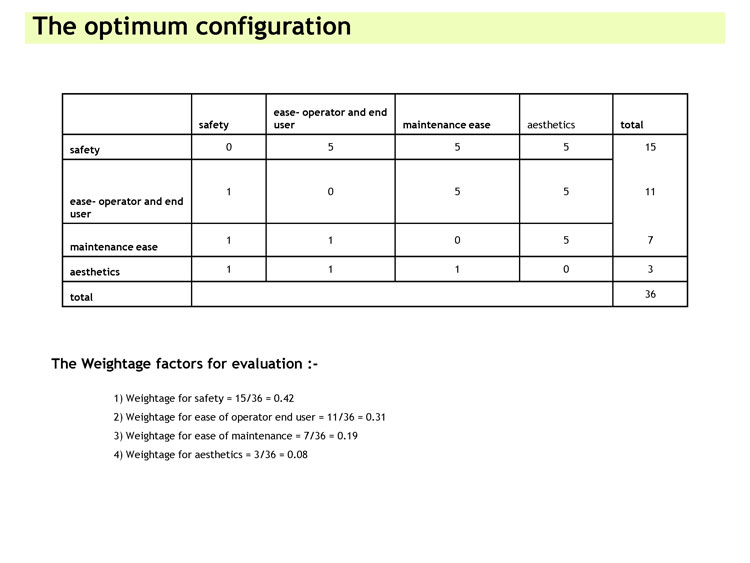

• Finalization for product organization

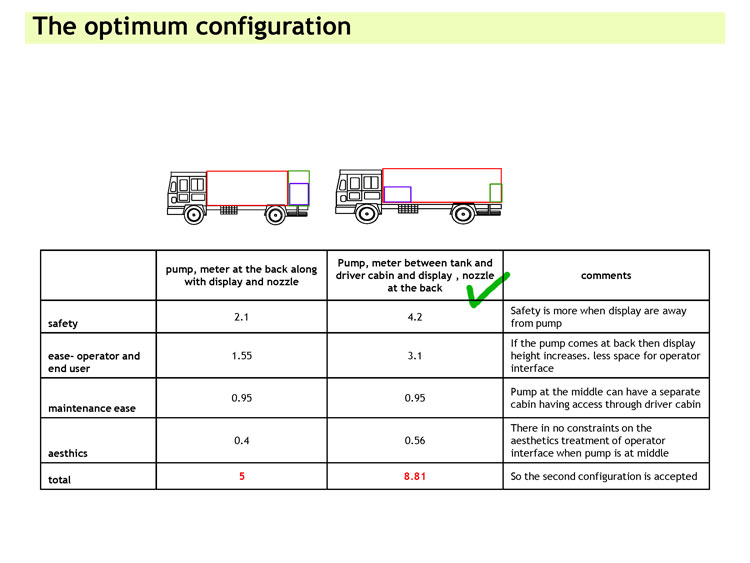

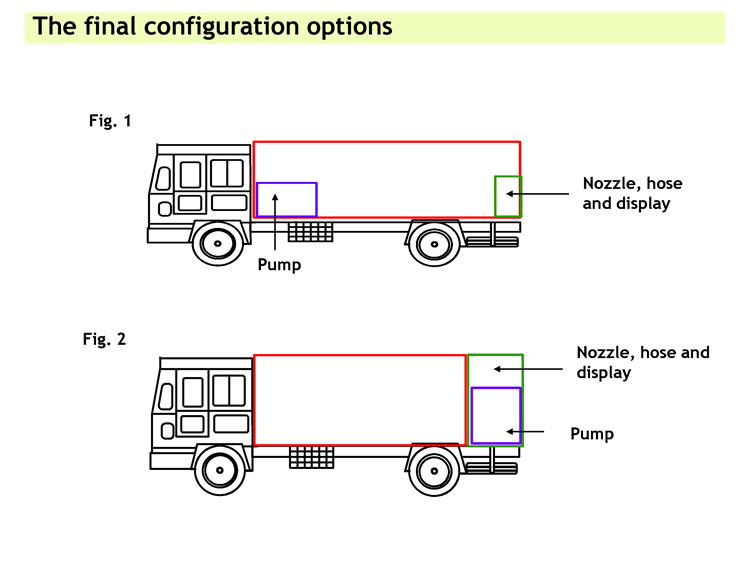

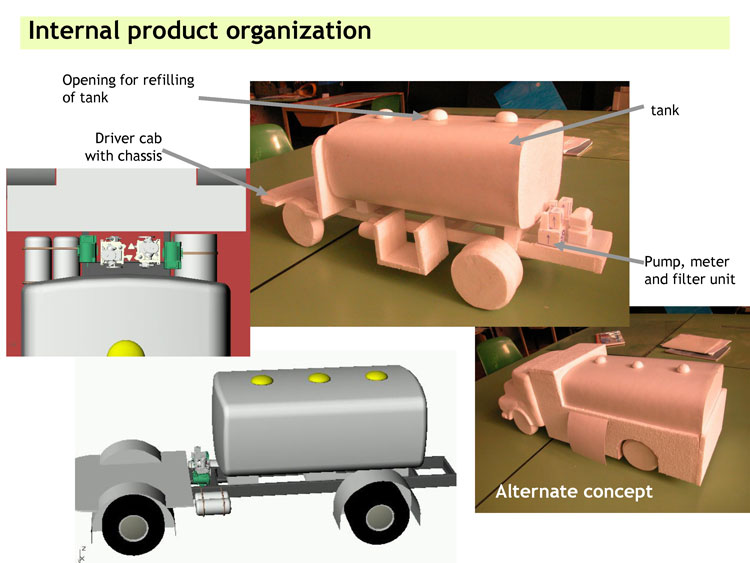

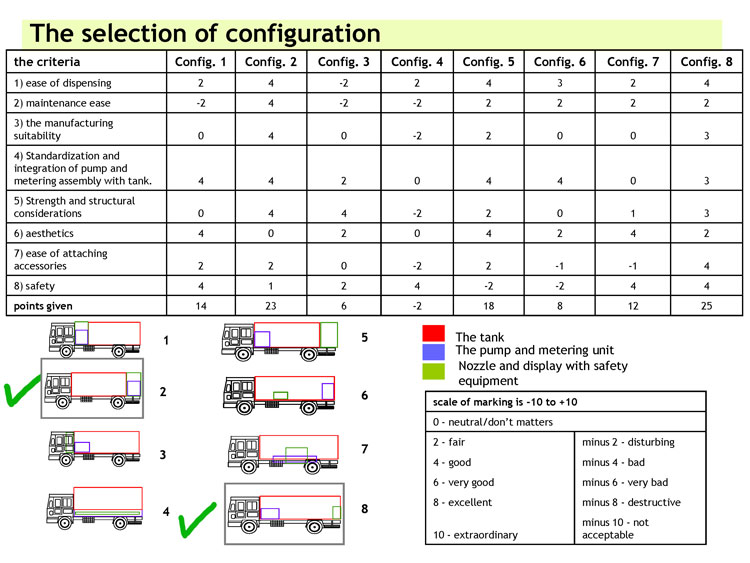

- Exploring product organization

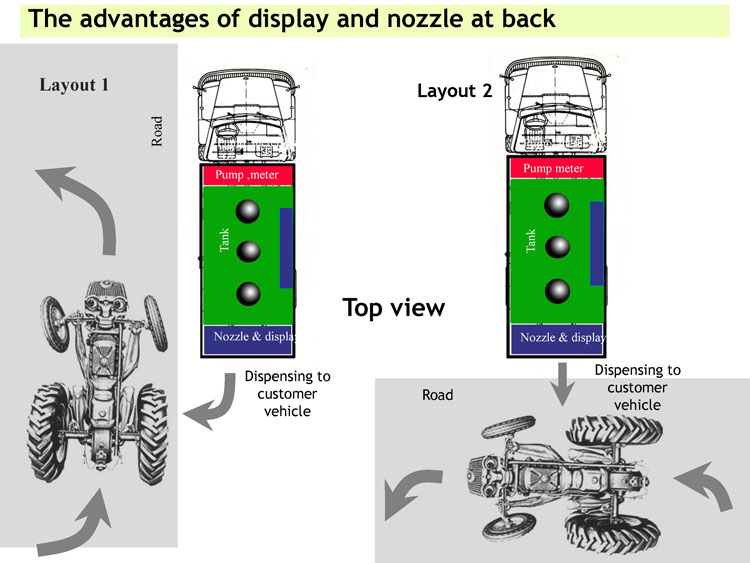

- Position of Hydraulics (pump, meter)
- Position of the display nozzle and hose

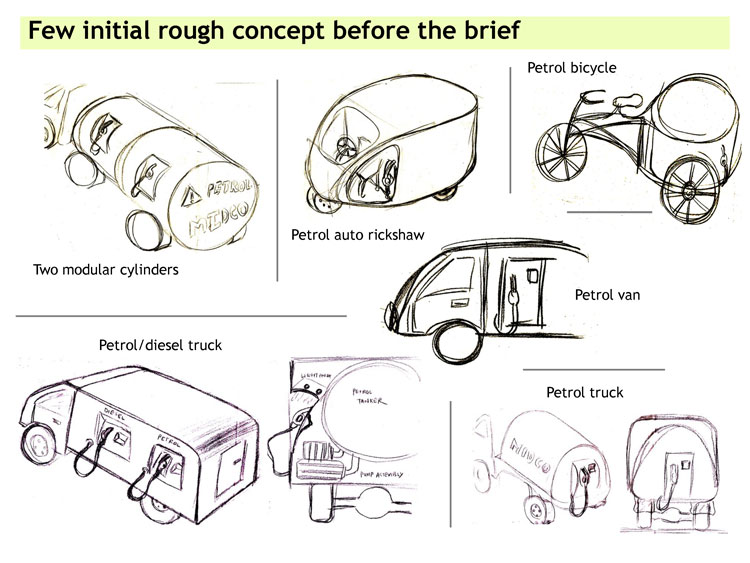

• Concept Generation

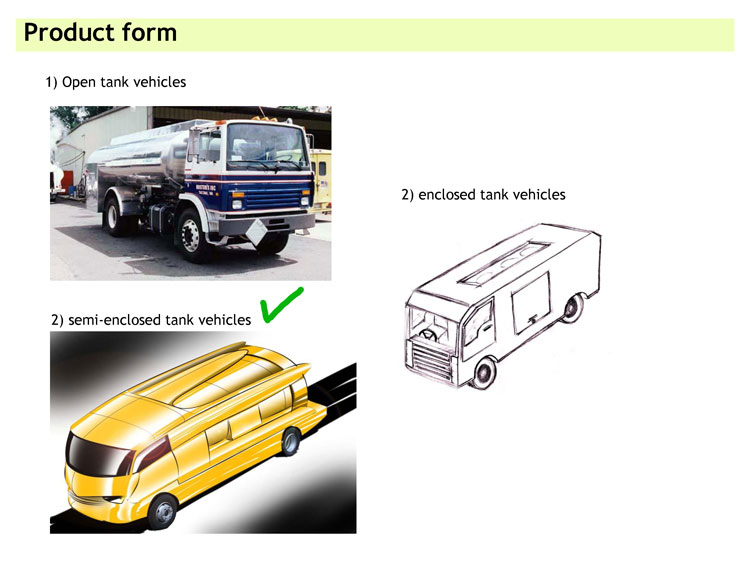

- Product form

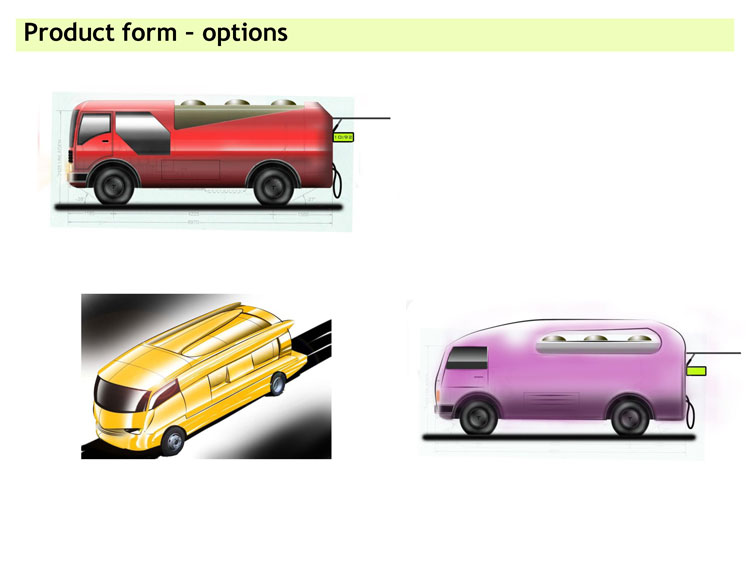

- Final product form options

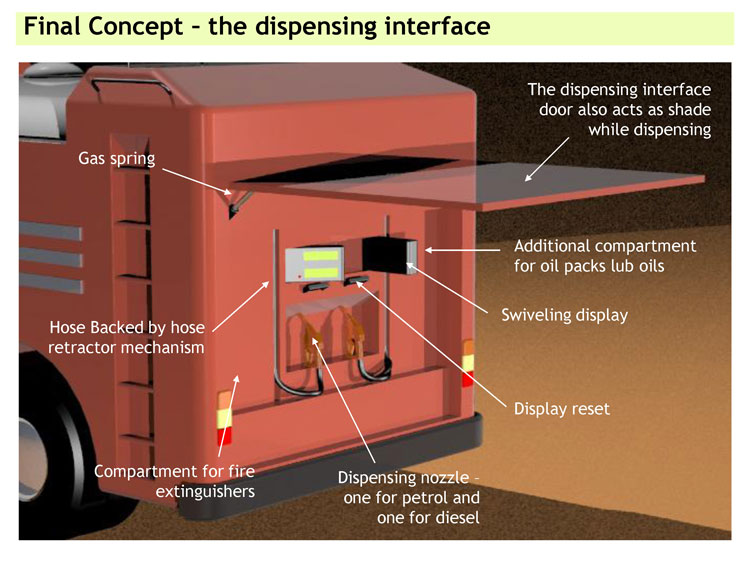

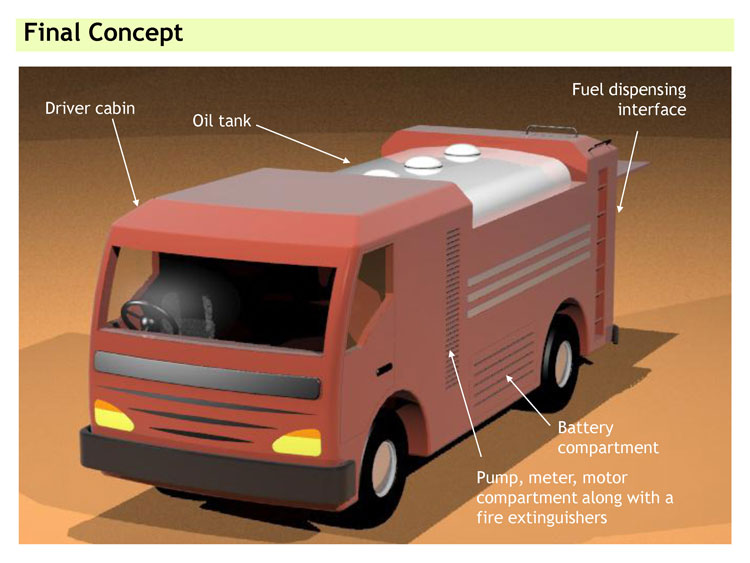

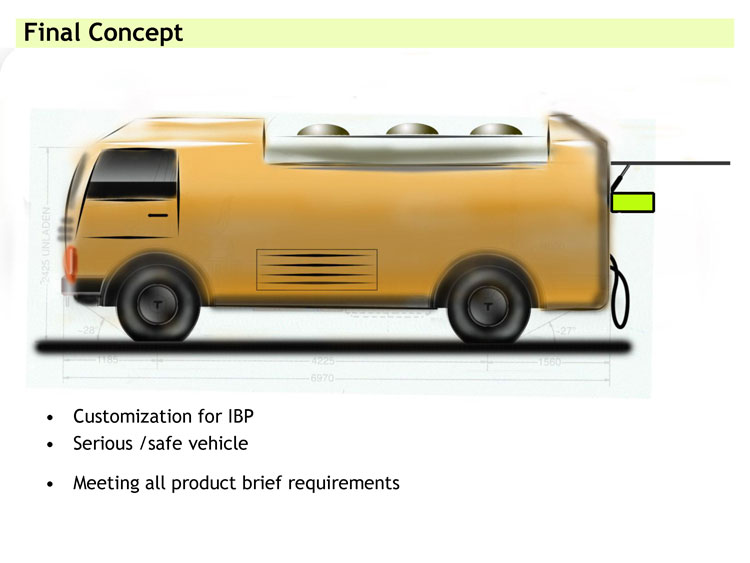

• Final concept
- Product description
- Final product features

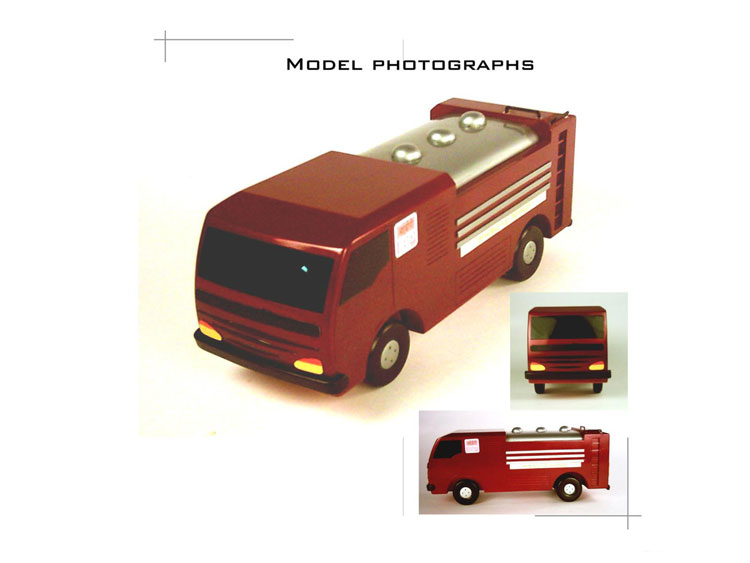

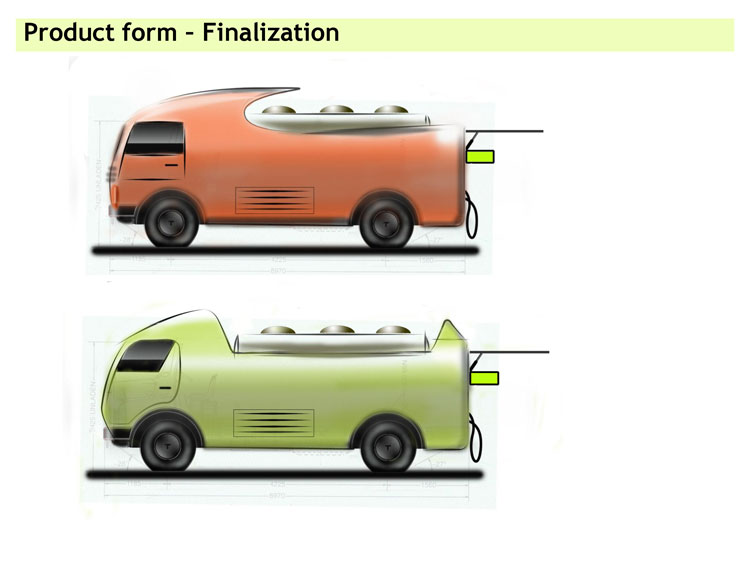

- Final Product form
Case Study Downloads:
• Design of a Mobile Petrol Pump - Bringing Fuel to the Vehicles - pdf
